Socket Hex Cap Screws ISO 4762
ISO 4672 Hexagon Socket Head Cap Screws (Metric)

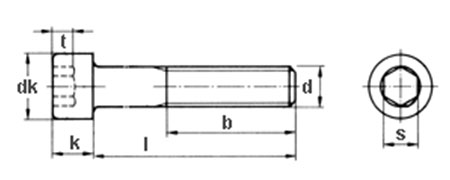

Dimensions of Hexagon Socket Head Cap Screws
| Dimensions | dk | k | s | b |
|---|---|---|---|---|
| M 1.4 | 2.6 | 1.4 | 1.3 | 14 |
| M 1.6 | 3 | 1.6 | 1.5 | 15 |
| M 2 | 3.8 | 2 | 1.5 | 16 |
| M 2.5 | 4.5 | 2.5 | 2 | 17 |
| M 3 | 5.5 | 3 | 2.5 | 18 |
| M 4 | 7 | 4 | 3 | 20 |
| M 5 | 8.5 | 5 | 4 | 22 |
| M 6 | 10 | 6 | 5 | 24 |
| M 8 | 13 | 8 | 6 | 28 |
| M 10 | 16 | 10 | 8 | 32 |
| M 12 | 18 | 12 | 10 | 36 |
| M 14 | 21 | 14 | 12 | 40 |
| M 16 | 24 | 16 | 14 | 44 |
| M 18 | 27 | 18 | 14 | 48 |
| M 20 | 30 | 20 | 17 | 52 |
| M 22 | 33 | 22 | 17 | 56 |
| M 24 | 36 | 24 | 19 | 60 |
| M 27 | 40 | 27 | 19 | 66 |
| M 30 | 45 | 30 | 22 | 72 |
| M 33 | 50 | 33 | 24 | 78 |
| M 36 | 54 | 36 | 27 | 84 |
| M 39 | 58 | 39 | 27 | 90 |
| M 42 | 63 | 42 | 32 | 96 |
| M 45 | 68 | 45 | 36 | 102 |
| M 52 | 78 | 52 | 36 | 108 |
| M 56 | 84 | 56 | 41 | 124 |
| M 64 | 96 | 64 | 46 | 140 |
| M 72 | 108 | 72 | 55 | 156 |
