Hex Cap Screws ASME B18.2.3.1M
ASME B18.2.3.1M Metric Hex Cap Screws

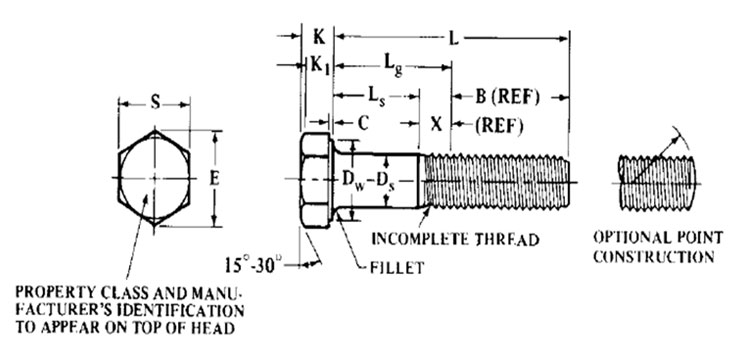

Dimensions of Metric Hex Cap Screws
| Nominal Screw Diameter, D, and Thread Pitch | Body Diameter Ds, | Width Across Flats, S | Width Across Corners, E | Head Height, K | Wrenching Height, K1 | Washer Face Thick, C | Washer Face Diameter, Dw | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | Max | Min | Min | Max | Min | Min | |
| M5 x 0.8 | 5.00 | 4.82 | 8.00 | 7.78 | 9.24 | 8.79 | 3.65 | 3.35 | 2.4 | 0.5 | 0.2 | 7.0 |
| M6 x 1 | 6.00 | 5.82 | 10.00 | 9.78 | 11.55 | 11.05 | 4.15 | 3.85 | 2.8 | 0.5 | 0.2 | 8.9 |
| M8 x 1.25 | 8.00 | 7.78 | 13.00 | 12.73 | 15.01 | 14.38 | 5.50 | 5.10 | 3.7 | 0.6 | 0.3 | 11.6 |
| M10 x 1.5 | 10.00 | 9.78 | 15.00 | 14.73 | 17.32 | 16.64 | 6.63 | 6.17 | 4.5 | 0.6 | 0.3 | 13.6 |
| aM10 x 1.5 | 10.00 | 9.78 | 16.00 | 15.73 | 18.48 | 17.77 | 6.63 | 6.17 | 4.5 | 0.6 | 0.3 | 14.6 |
| M12 x 1.75 | 12.00 | 11.73 | 18.00 | 17.73 | 20.78 | 20.03 | 7.76 | 7.24 | 5.2 | 0.6 | 0.3 | 16.6 |
| M14 x 2.0 | 14.00 | 13.73 | 21.00 | 20.67 | 24.25 | 23.35 | 9.09 | 8.51 | 6.2 | 0.6 | 0.3 | 19.6 |
| M16 x 2.0 | 16.00 | 15.73 | 24.00 | 23.67 | 27.71 | 26.75 | 10.32 | 9.68 | 7.0 | 0.8 | 0.4 | 22.5 |
| M20 x 2.5 | 20.00 | 19.67 | 30.00 | 29.16 | 34.64 | 32.95 | 12.88 | 12.12 | 8.8 | 0.8 | 0.4 | 27.7 |
| M24 x 3 | 24.00 | 23.67 | 36.00 | 35.00 | 41.57 | 39.55 | 15.44 | 14.56 | 10.5 | 0.8 | 0.4 | 33.2 |
| M30 x 3.5 | 30.00 | 29.67 | 16.00 | 45.00 | 53.12 | 50.85 | 19.48 | 17.92 | 13.1 | 0.8 | 0.4 | 42.7 |
| M36 x 4 | 36.00 | 35.61 | 55.00 | 53.80 | 63.51 | 60.79 | 23.38 | 21.62 | 15.8 | 0.8 | 0.4 | 51.1 |
| M42 x 4.5 | 42.00 | 41.38 | 65.00 | 62.90 | 75.06 | 71.71 | 26.97 | 25.03 | 18.2 | 1.0 | 0.5 | 59.8 |
| M48 x 5 | 48.00 | 47.38 | 75.00 | 72.60 | 86.60 | 82.76 | 31.07 | 28.93 | 21.0 | 1.0 | 0.5 | 69.0 |
| M56 x 5.5 | 56.00 | 55.26 | 85.00 | 82.20 | 98.15 | 93.71 | 36.20 | 33.80 | 24.5 | 1.0 | 0.5 | 78.1 |
| M64 x 6 | 64.00 | 63.26 | 95.00 | 91.80 | 109.70 | 104.65 | 41.32 | 38.68 | 28.0 | 1.0 | 0.5 | 87.2 |
| M72 X 6 | 72.00 | 71.26 | 105.00 | 101.40 | 121.24 | 115.60 | 46.45 | 43.55 | 31.5 | 1.2 | 0.6 | 96.3 |
| M80 x 6 | 80.00 | 79.26 | 115.00 | 111.00 | 132.72 | 126.54 | 51.58 | 48.42 | 35.0 | 1.2 | 0.6 | 105.4 |
| M90 x 6 | 90.00 | 89.13 |
130.00 |
125.50 | 150.11 | 143.07 | 57.74 | 54.26 | 39.2 | 1.2 | 0.6 | 119.2 |
| M100 x 6 | 100.00 | 99.13 | 145.00 | 140.00 | 167.43 | 159.60 | 63.90 | 60.10 | 43.4 | 1.2 | 0.6 | 133.0 |
1.aThis size with width across flats of 15mm is not standard. Unless specifically
ordered,
M10 hex cap screws with 16mm width across flats will be furnished.
2.All dimensions are in millimeters.
3.Transition Thread length X, includes the length of incomplete threads and tolerances on grip
gaging
length and body length. It is intended for calculation puposes.
