Hex Bolts UNI 5737

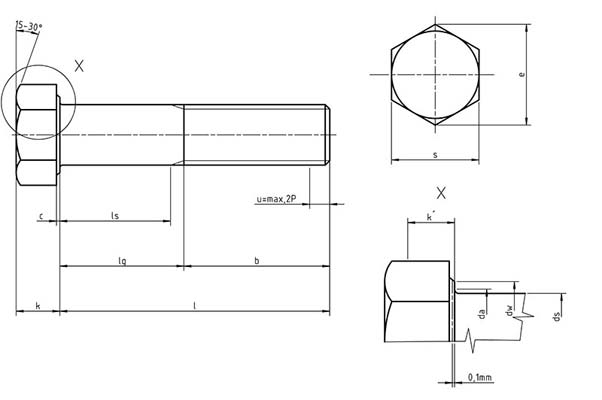

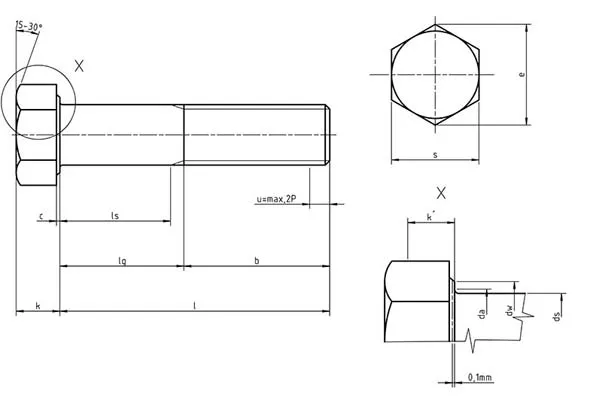

UNI 5737 Hexagon head bolts with shank
Dimensions for UNI 5737 Hexagon head bolts with shank
| P | D | k | V | b | |
|---|---|---|---|---|---|
| l≤120 | l>120 | ||||
| 0.8 | 9 | 4 | 5 | 16 | - |
| 1 | 11 | 5 | 6 | 18 | - |
| 1.25 | 14 | 6 | 8 | 22 | - |
| 1.5 | 18 | 8 | 10 | 26 | 32 |
| 1.75 | 23 | 10 | 12 | 30 | 36 |
| 2 | 28 | 12 | 16 | 38 | 44 |
| 2.5 | 35 | 15 | 20 | 46 | 52 |
