ASME B18.2.3.5M Metric Hex Screws
Metric Hex Bolts & Hex Screws with Reduced Body Diameters

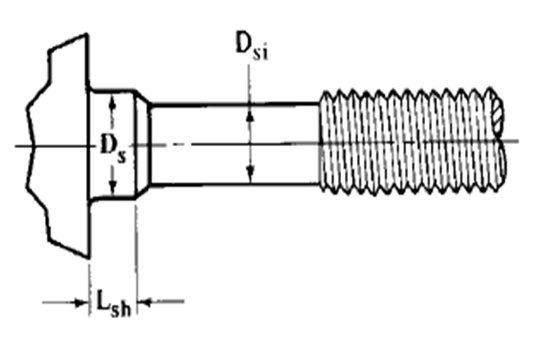

Dimensions of Metric Hex Bolts & Hex Screws with Reduced Body Diameters
| Nominal Diameter, D, and Thread Pitch | Shoulder Diameter Ds, | Body Diameter Dsi, | Shoulder Length, Lsh | |||
|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | |
| Metric Formed Hex Screws (ANSI B18.2.3.2M-1979, R1989) | ||||||
| M5 x 0.8 | 5.00 | 4.46 | 4.46 | 4.36 | 3.5 | 2.5 |
| M6 x 1 | 6.00 | 5.82 | 5.39 | 5.21 | 4.0 | 3.0 |
| M8 x 1.25 | 8.00 | 7.78 | 7.26 | 7.04 | 5.0 | 4.0 |
| M10 x 1.5 | 10.00 | 9.78 | 9.08 | 8.86 | 6.0 | 5.0 |
| M12 x 1.75 | 12.00 | 11.73 | 10.95 | 10.68 | 7.0 | 6.0 |
| M14 x 2 | 14.00 | 13.73 | 12.77 | 12.50 | 8.0 | 7.0 |
| M16 x 2 | 16.00 | 15.73 | 14.77 | 14.50 | 9.0 | 8.0 |
| M20 x 2.5 | 20.00 | 19.67 | 18.49 | 18.16 | 11.0 | 10.0 |
| M24 x 3 | 24.00 | 23.67 | 22.13 | 21.80 | 13.0 | 12.0 |
| Metric Hex Flange Screws (ANSI B18.2.3.4M-1984) | ||||||
| M5 x 0.8 | 5.00 | 4.82 | 4.46 | 4.36 | 3.5 | 2.5 |
| M6 x 1 | 6.00 | 5.82 | 5.39 | 5.21 | 4.0 | 3.0 |
| M8 x 1.25 | 8.00 | 7.78 | 7.26 | 7.04 | 5.0 | 4.0 |
| M10 x 1.5 | 10.00 | 9.78 | 9.08 | 8.86 | 6.0 | 5.0 |
| M12 x 1.75 | 12.00 | 11.73 | 10.95 | 10.68 | 7.0 | 6.0 |
| M14 x 2 | 14.00 | 13.73 | 12.77 | 12.5 | 8.0 | 7.0 |
| M16 x 2 | 16.00 | 15.73 | 14.77 | 14.5 | 9.0 | 8.0 |
| Metric Hex Bolts (ANSI B18.2.3.5M-1979, R1989) | ||||||
| M5 x 0.8 | 5.48 | 4.52 | 4.46 | 4.36 | 3.5 | 2.5 |
| M6 x 1 | 6.48 | 5.52 | 5.39 | 5.21 | 4.0 | 3.0 |
| M8 x 1.25 | 8.58 | 7.42 | 7.26 | 7.04 | 5.0 | 4.0 |
| M10 x 1.5 | 10.58 | 9.42 | 9.08 | 8.86 | 6.0 | 5.0 |
| M12 x 1.75 | 12.70 | 11.30 | 10.95 | 10.68 | 7.0 | 6.0 |
| M14 x 2 | 14.70 | 13.30 | 12.77 | 12.50 | 8.0 | 7.0 |
| M16 x 2 | 16.70 | 15.30 | 14.77 | 14.50 | 9.0 | 8.0 |
| M20 x 2.5 | 20.84 | 19.16 | 18.49 | 18.16 | 11.0 | 10.0 |
| M24 x 3 | 24.84 | 23.16 | 22.13 | 21.80 | 13.0 | 12.0 |
| Metric Heavy Hex Bolts (ANSI B18.2.3.6M-1979, R1989) | ||||||
| M12 x 1.75 | 12.70 | 11.30 | 10.95 | 10.68 | 7.0 | 6.0 |
| M14 x 2 | 14.70 | 13.30 | 12.77 | 12.50 | 8.0 | 7.0 |
| M16 x 2 | 16.70 | 15.30 | 14.77 | 14.50 | 9.0 | 8.0 |
| M20 x 2.5 | 20.84 | 19.16 | 18.49 | 18.16 | 11.0 | 10.0 |
| M24 x 3 | 24.84 | 23.16 | 22.13 | 21.80 | 13.0 | 12.0 |
| Metric Heavy Hex Flange Screws (ANSI B18.2.3.9M-1984) | ||||||
| M10 x 1.5 | 10.00 | 9.78 | 9.08 | 8.86 | 6.0 | 5.0 |
| M12 x 1.75 | 12.00 | 11.73 | 10.95 | 10.68 | 7.0 | 6.0 |
| M14 x 2 | 14.00 | 13.73 | 12.77 | 12.50 | 8.0 | 7.0 |
| M16 x 2 | 16.00 | 15.73 | 14.77 | 14.50 | 9.0 | 8.0 |
| M20 x 2.5 | 20.00 | 19.67 | 18.49 | 18.16 | 11.0 | 10.0 |
1. a Shoulder is mandatory for formed hex screws, hex flange screws, and heavy hex
flange screws. Shoulder is optional for hex bolts and heavy hex bolts.
2. All dimensions are in millimeters.
