Heavy Hex Bolts DIN 6914

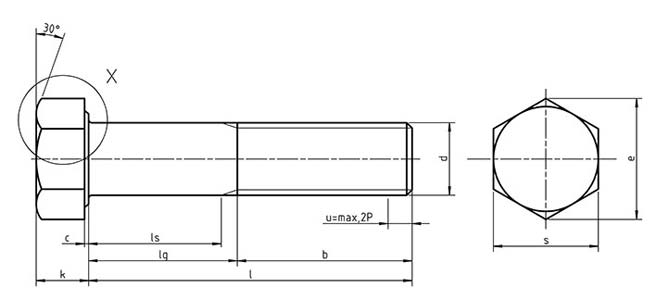

DIN 6914 Hexagon Head Bolts with Large Width Across Flats
Dimensions of Hexagon Head Bolts with Large Width Across Flats
| d1 | k | s | L ≤ 1 | b 1 | L ≥ 2 | b 2 | e min |
|---|---|---|---|---|---|---|---|
| M 12 | 8 | 22 | 40 | 21 | 45 | 23 | 23.91 |
| M 16 | 10 | 27 | 70 | 26 | 75 | 28 | 29.56 |
| M 20 | 13 | 32 | 85 | 31 | 90 | 33 | 35.03 |
| M 22 | 14 | 36 | 85 | 32 | 90 | 34 | 39.55 |
| M 24 | 15 | 41 | 85 | 34 | 90 | 37 | 45.20 |
| M 27 | 17 | 46 | 95 | 37 | 100 | 39 | 50.85 |
| M 30 | 19 | 50 | 95 | 40 | 100 | 42 | 55.37 |
| M 36 | 23 | 60 | 95 | 48 | 100 | 50 | 66.44 |
