ASME B18.2.1 Heavy Hex bolts, Inch Series
ASME B18.2.1 Heavy Hex bolts, Inch Series

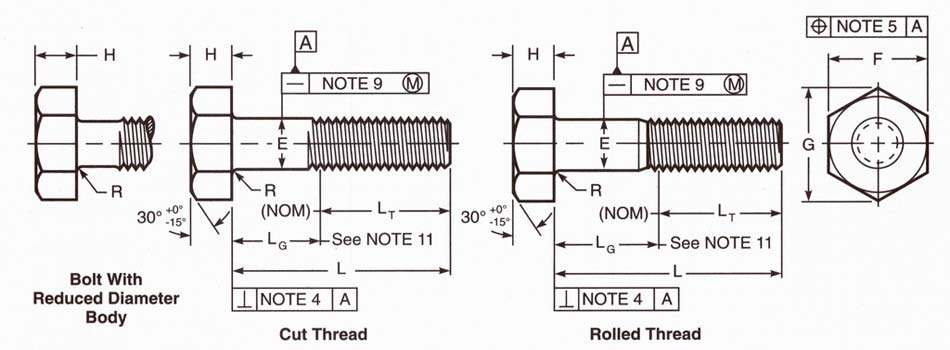

Dimensions of ASME B18.2.1 Heavy Hex Bolts
| Nominal Size or Basic product Diameter |
Full Size Body Diameter, E | Width Across Flats, F | Width Across Corners, G | Head Height, H | Radius of Fillet, R | Thread Length for Bolt Lengths, LT |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 in. and Shorter | Over 6 in. | ||||||||||||
| Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Nom | Nom | ||
| 3/8 | 0.3750 | 0.388 | 0.360 | 0.688 | 0.669 | 0.794 | 0.763 | 0.268 | 0.226 | 0.03 | 0.01 | 1.000 | 1.250 |
| 1/2 | 0.5000 | 0.515 | 0.482 | 0.875 | 0.850 | 1.010 | 0.969 | 0.364 | 0.302 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8 | 0.6250 | 0.642 | 0.605 | 1.062 | 1.031 | 1.227 | 1.175 | 0.444 | 0.378 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4 | 0.7500 | 0.768 | 0.729 | 1.250 | 1.212 | 1.443 | 1.383 | 0.524 | 0.455 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8 | 0.8750 | 0.895 | 0.852 | 1.438 | 1.394 | 1.660 | 1.589 | 0.604 | 0.531 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1 | 1.000 | 1.022 | 0.976 | 1.625 | 1.575 | 1.876 | 1.796 | 0.700 | 0.591 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1 1/8 | 1.1250 | 1.149 | 1.098 | 1.812 | 1.756 | 2.093 | 2.002 | 0.780 | 0.658 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1 1/4 | 1.2500 | 1.277 | 1.223 | 2.000 | 1.938 | 2.309 | 2.209 | 0.876 | 0.749 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1 3/8 | 1.3750 | 1.404 | 1.345 | 2.188 | 2.119 | 2.526 | 2.416 | 0.940 | 0.810 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1 1/2 | 1.5000 | 1.531 | 1.470 | 2.375 | 2.300 | 2.742 | 2.622 | 1.036 | 0.902 | 0.09 | 0.03 | 3.250 | 3.500 |
| 1 5/8 | 1.6250 | 1.658 | 1.591 | 2.562 | 2.481 | 2.959 | 2.829 | 1.116 | 0.978 | 0.09 | 0.03 | 3.500 | 3.750 |
| 1 3/4 | 1.7500 | 1.785 | 1.716 | 2.750 | 2.662 | 3.175 | 3.035 | 1.196 | 1.054 | 0.12 | 0.04 | 3.750 | 4.000 |
| 1 7/8 | 1.8750 | 1.912 | 1.839 | 2.938 | 2.844 | 3.392 | 3.242 | 1.276 | 1.130 | 0.12 | 0.04 | 4.000 | 4.250 |
| 2 | 2.000 | 2.039 | 1.964 | 3.125 | 3.025 | 3.608 | 3.449 | 1.388 | 1.175 | 0.12 | 0.04 | 4.250 | 4.500 |
| 2 1/4 | 2.2500 | 2.305 | 2.214 | 3.500 | 3.388 | 4.041 | 3.862 | 1.548 | 1.327 | 0.19 | 0.06 | 4.750 | 5.000 |
| 2 1/2 | 2.5000 | 2.559 | 2.461 | 3.875 | 3.750 | 4.474 | 4.275 | 1.708 | 1.479 | 0.19 | 0.06 | 5.250 | 5.500 |
| 2 3/4 | 2.7500 | 2.827 | 2.711 | 4.250 | 4.112 | 4.907 | 4.688 | 1.869 | 1.632 | 0.19 | 0.06 | 5.750 | 6.000 |
| 3 | 3.000 | 3.081 | 2.961 | 4.625 | 4.475 | 5.340 | 5.102 | 2.060 | 1.815 | 0.19 | 0.06 | 6.250 | 6.500 |
