Eye Bolts UNI 6058
UNI 6058 Eyebolts

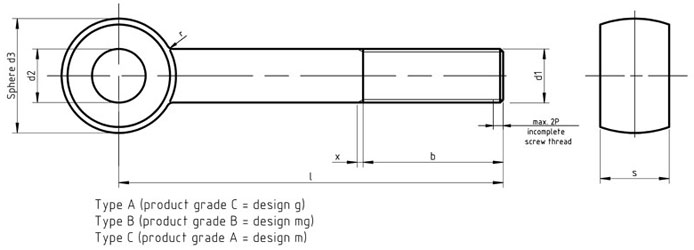

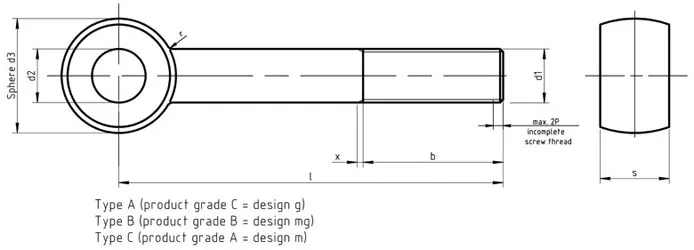

Dimensions for UNI 6058 Eyebolts
| Thread d1 | b | d2 | d3 | r | s | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| +2P | 0 | H9 | max | min Type A | min Type B & C | approx | Type A max | Type A min | Type B & C max | Type B & C min | |||
| M5 | 0.8 | 16 | - | - | 5 | 12 | 10.9 | 11.57 | 2.5 | 8 | 7.52 | 6 | 5.88 |
| M6 | 1 | 18 | - | - | 6 | 14 | 12.9 | 13.57 | 4 | 9 | 8.52 | 7 | 6.85 |
| M8 | 1.25 | 22 | 28 | - | 8 | 18 | 16.9 | 17.57 | 4 | 11 | 10.3 | 9 | 8.85 |
| M10 | 1.5 | 26 | 32 | - | 10 | 20 | 18.7 | 19.48 | 4 | 14 | 13.3 | 12 | 11.82 |
| M12 | 1.75 | 30 | 36 | 49 | 12 | 25 | 23.7 | 24.48 | 6 | 17 | 16.3 | 14 | 13.82 |
| M16 | 2 | 38 | 44 | 57 | 16 | 32 | 30.4 | 31.38 | 6 | 19 | 18.16 | 17 | 16.82 |
| M20 | 2.5 | 46 | 52 | 65 | 18 | 40 | 38.4 | 39.38 | 6 | 24 | 23.16 | 22 | 21.79 |
| M24 | 3 | 54 | 60 | 73 | 22 | 45 | 43.4 | 44.38 | 10 | 28 | 27.16 | 25 | 24.79 |
| M27 | 3 | 6 | 66 | 79 | 24 | 50 | 48.4 | 49.38 | 10 | 30 | 29.16 | 27 | 26.79 |
| M30 | 3.5 | 66 | 72 | 85 | 27 | 55 | 53.1 | 54.26 | 10 | 34 | 33 | 30 | 29.79 |
| M33 | 3.5 | - | 78 | 91 | 30 | 60 | 58.1 | 59.26 | 16 | 38 | 37 | 34 | 33.75 |
| M36 | 4 | - | 84 | 97 | 32 | 65 | 63.1 | 64.26 | 16 | 41 | 40 | 38 | 37.75 |
| M39 | 4 | - | 90 | 103 | 35 | 70 | 68.1 | 69.26 | 16 | 46 | 45 | 41 | 40.75 |
